Hexagon Head Screws

Printer Friendly Page
Skip to Description
Skip to Prices

Description

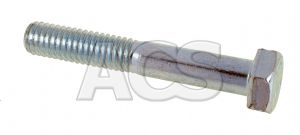

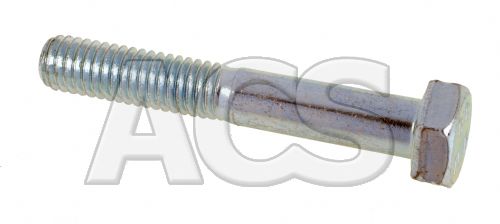

M6 Hexagon head screws suitable for attaching tube clamps to cover plate & weld plate or mounting rail of the same group number.

Available in carbon or stainless steel.

According to DIN 931/933

Group 0 are the single bolt style clamp - all other groups require two screws.

At ACS we specialise in many different types of pipe/tube clamps for a wide range of applications - whatever your requirements please contact us and a member of our team will be happy to help.

Technical Details

Datasheets

Hexagon Head Screws datasheet

SSL-A

Material Properties

Assembly Instructions

Prices (Click quantity for more availability info)

	RSB Ref	Group	Thread x Length	Order Code	Available	Each
Hexagon Head Screw - Carbon Steel
	SSL-A0	0	M6 x 30	148934	0	£0.23
	SSL-A1	1	M6 x 30	148935	0	£0.23
	SSL-A2	2	M6 x 35	148936	5	£0.25
	SSL-A3	3	M6 x 40	148937	0	£0.25
	SSL-A4	4	M6 x 45	148938	24	£0.27
	SSL-A5	5	M6 x 60	148939	0	£0.37
	SSL-A6	6	M6 x 70	148940	0	£0.48
	SSL-A7	7	M6 x 100	148941	0	£0.92
	SSL-A8	8	M6 x 125	148942	0	£3.68
Hexagon Head Screw - Stainless Steel
	SSL-A0-SS	0	M6 x 30	148943	0	£1.08
	SSL-A1-SS	1	M6 x 30	148944	0	£1.08
	SSL-A2-SS	2	M6 x 35	148945	0	£1.22
	SSL-A3-SS	3	M6 x 40	148946	10	£1.28
	SSL-A4-SS	4	M6 x 45	148947	0	£1.47
	SSL-A5-SS	5	M6 x 60	148948	0	£1.93
	SSL-A6-SS	6	M6 x 70	148949	0	£2.27
	SSL-A7-SS	7	M6 x 100	148950	0	£3.52
	SSL-A8-SS	8	M6 x 125	148951	0	£9.43

(All Prices Exclude VAT)
