PCL PF Series Quick Release Couplings

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

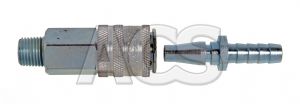

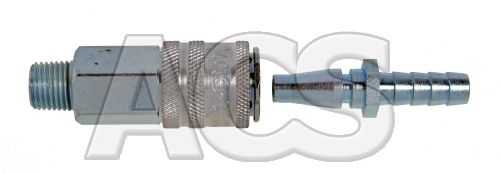

PCL PF series quick release couplings and plugs for compressed air. Available with female parallel and male tapered BSP theads. Also available with hose tail connectors.

At ACS we specialise in many different types of quick release couplings for a wide range of applications - whatever your requirements please contact us and a member of our team will be happy to help.

Technical Details

Material:	Steel
Nominal Bore:	5.0 mm
Flow Rate:	2200 l/min @ 6 bar
Maximum Pressure:	35 bar
Temperature:	-40 to +100 deg C

Interchangeability:	Cejn 399
	Rectus 17
	Standard Schrader

Datasheets

PCL PF Series Quick Release Couplings datasheet

Click Here

Prices (Click quantity for more availability info)

	PCL Ref	Type	Size	Order Code	Available	Each
PCL PF Coupling
	AC77CF	Female Thread	G1/4"	103120	13	£11.52
	AC77EF	-	G3/8"	103121	14	£11.52
	AC77JF	-	G1/2"	103122	12	£11.52
	AC77CM	Male Thread	R1/4"	103123	20	£11.52
	AC77EM	-	R3/8"	103124	6	£11.52
	AC77JM	-	R1/2"	103125	11	£11.52
	AC7706	Hosetail	6mm	103126	11	£11.52
	AC7708	-	8mm	103127	10	£11.52
	AC7710	-	10mm	103128	20	£11.52
	AC7713	-	13mm	103136	22	£11.52
PCL PF Plug
	AA7706	Female Thread	G1/4"	103135	30	£2.13
	AA7707	-	G3/8"	123302	7	£2.43
	AA7702	Male Thread	R1/4"	103133	27	£2.13
	AA7703	-	R3/8"	123301	17	£2.43
	AA7710	Hosetail	6mm	103129	15	£2.13
	AA7711	-	8mm	103130	11	£2.13
	AA7712	-	10mm	103131	20	£2.13

(All Prices Exclude VAT)
